enev-kit e1 – Pure Efficiency

Ventilation and smoke extraction for elevator shafts

Why you should choose the enev-kit e1:

  • reliable fire detection (point-type smoke detectors)
  • fully pre-assembled & pre-configured
  • fail-safe operation: safety under all conditions
  • Optional: Control of an additional ventilation flap

Request a quote

Technical specifications

Shaft Height Up to 24 m
Energy Savings Up to 35,000 kWh per year
CO₂ Emission Reduction Up to 8 tons per year
CE Certification EN 54-7, EN 12101-2
EN 12101-10
Detector Base Point-type smoke detectors
Fail-Safe Operation
Status Display Operation, Fault, Alarm
Manual Activation
Connection to Fire Alarm System (BMA) x
Ventilation Sensors Temperature, CO₂
Timed Ventilation
Outputs (NO / NC) Alarm, Fault, EVAC
Inputs External fire alarm / External reset, Elevator fault

Additional Features

e-flap (NRWG)

  • More than 100 variants available
  • Certified according to EN 12101-2 & EN 1751 Class 2
  • Installation options: A: in front of the opening, B: within the opening

Roof Hood

  • Up to 1200 mm x 1200 mm
  • Galvanized & insulated
  • Optional powder coating in RAL colors
  • Bird protection grille

Request a quote

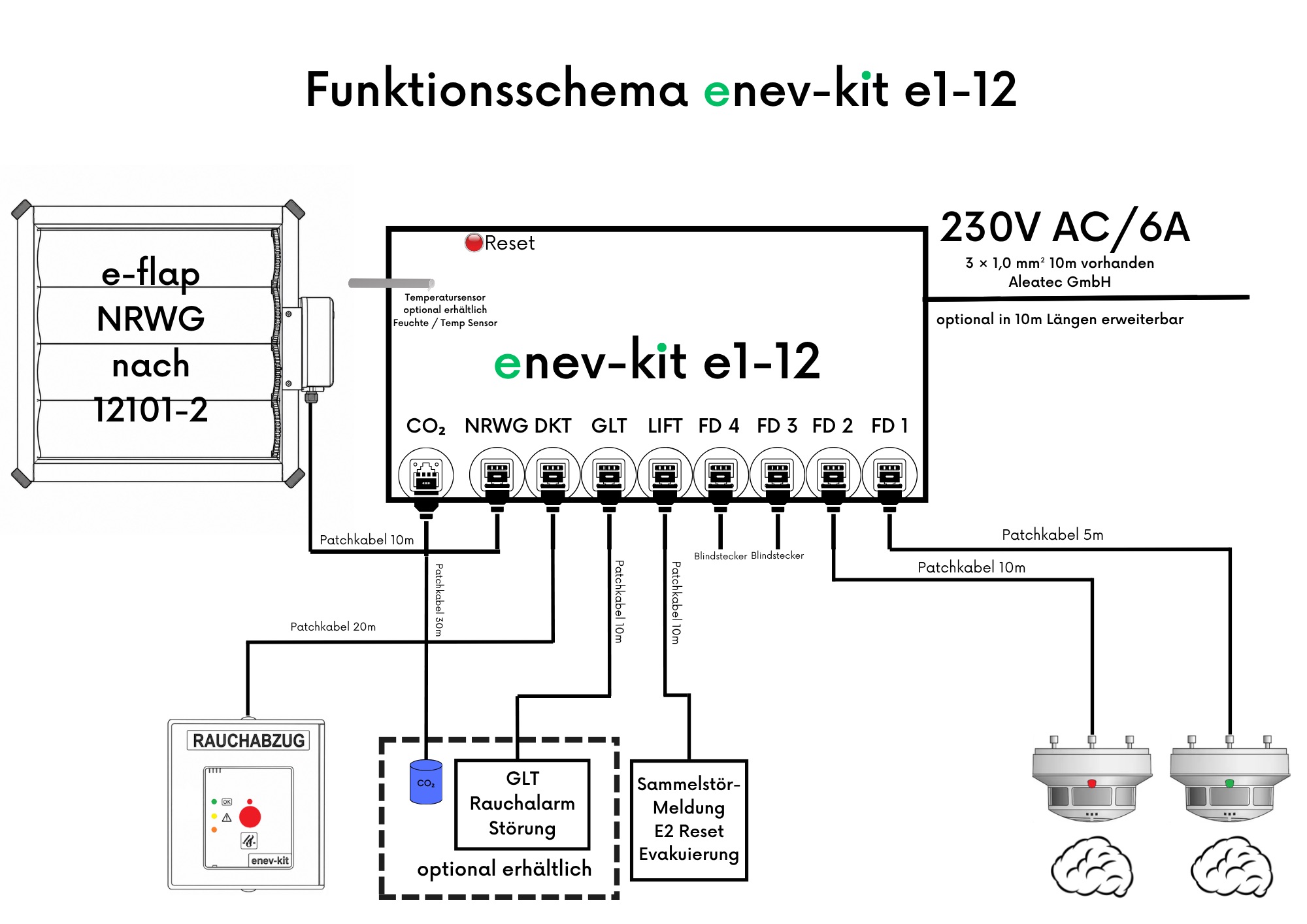

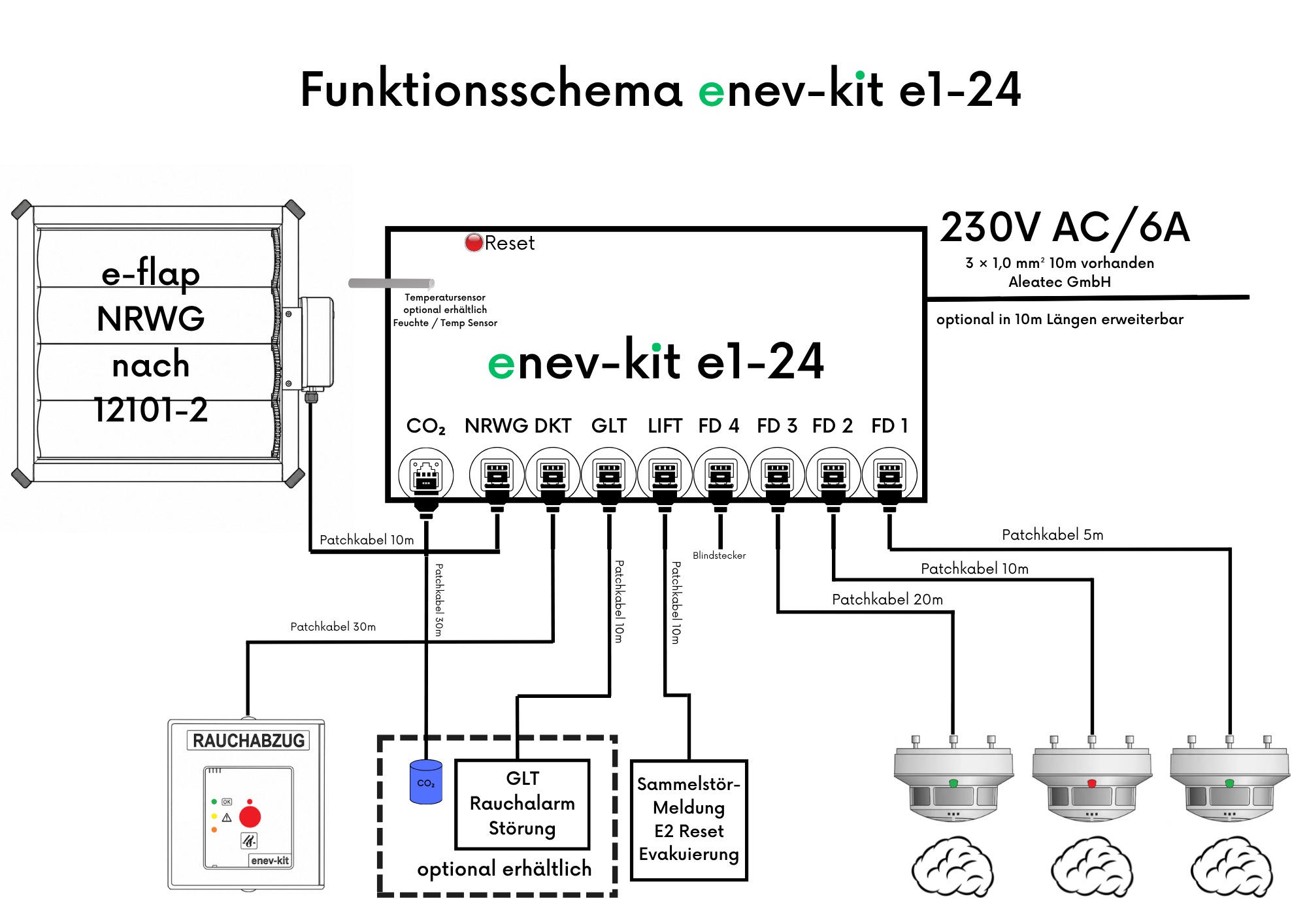

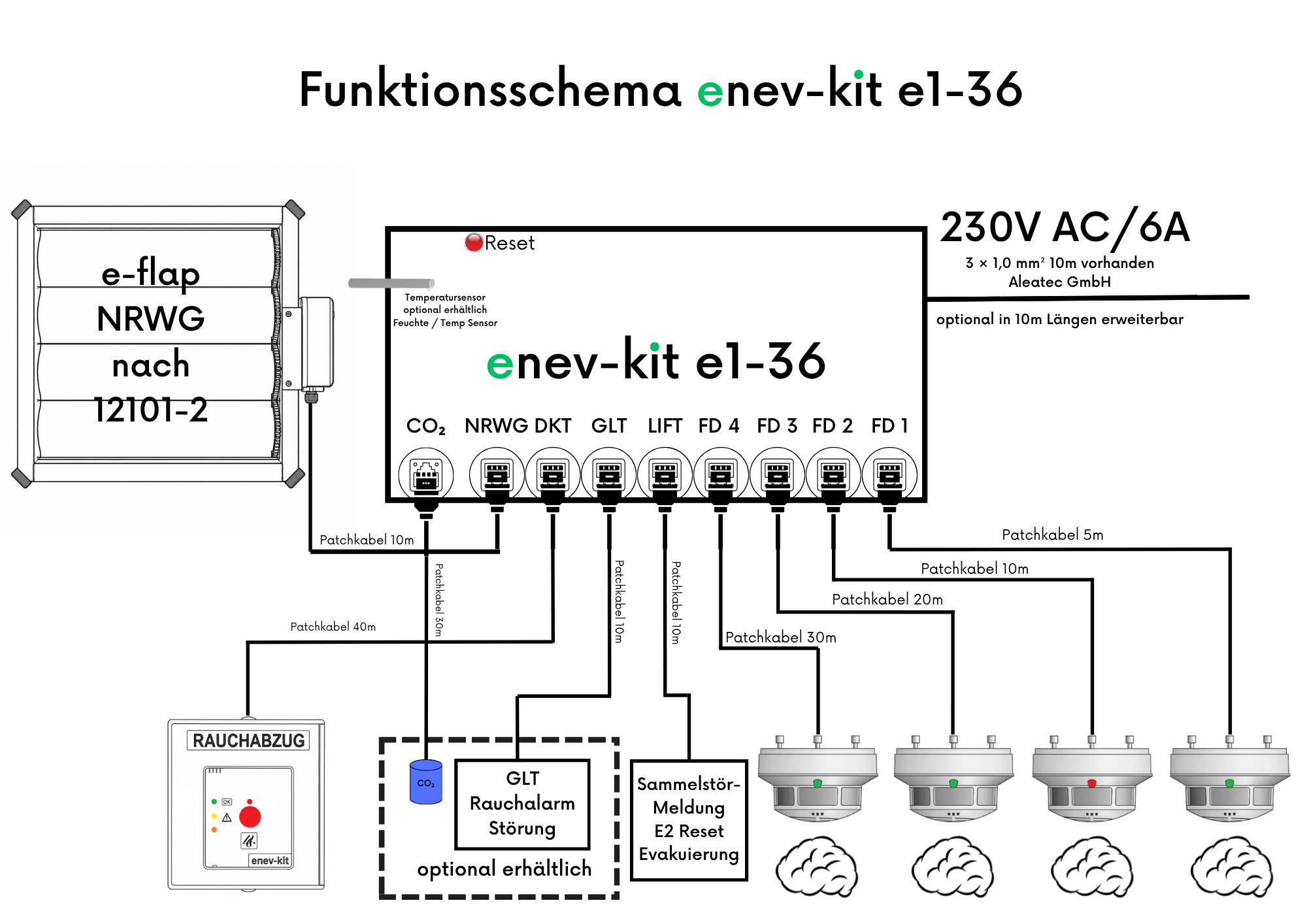

Function Diagram
